Quantile Analysis and Regression
Quantile Tables are by themselves powerful analytics tools, but they are also at the heart of
Logistic Regression Model and
Logistic Fit. In addition, they are also the basis of popular analysis tools such as
Gains and Lift Charts, which are essential for making good decisions about the quality
of a model and to estimate the benefits of using a model.
The number of buckets or quantiles is entered in the Quantiles combo box at the top of the Logistic Regression Window. The most commonly used
Quantile Tables such as Quartiles, Quintiles, Deciles, Vingtiles, Percentiles, and 1000-tiles are listed by default, but you can type any valid quantile number in the box to build the most appropriate quantile table for your data.
The number of quantiles is an essential parameter for most of
the analyses performed in the Logistic Regression Window (obviously Quantile
Regression and Analysis,
but also Gains Chart, Lift Chart,
Log Odds and Logistic Regression, Logistic Fit, and
Logistic Confusion Matrix) and therefore
it is saved for each model and for each dataset.
On their own, Quantile Tables are widely used in risk assessment applications and in a variety of response models to create
rankings or scores. Percentiles, for instance, are very popular and often used for that purpose alone. But in GeneXproTools, Quantile Tables are explored to the fullest and are
therefore also used to create a more sophisticated ranking system: the
probabilistic ranking system of the Logistic Regression Model. This model estimates unique probabilities for each and every new case,
forming a very elegant ranking system, perfectly bounded between 0

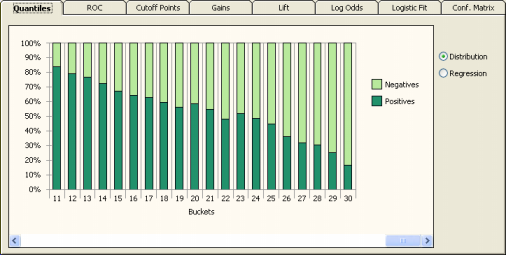

GeneXproTools shows its Quantile Tables in 100% stacked column charts, where the distribution of both
Positive and Negative categories is shown for all the buckets. By moving the cursor over each column, GeneXproTools shows both the percentage and absolute values for each class. For more than 20 buckets, a scroll bar appears at the bottom of the
Quantile Chart and by moving it you can see the distribution over all the range
of model outputs.

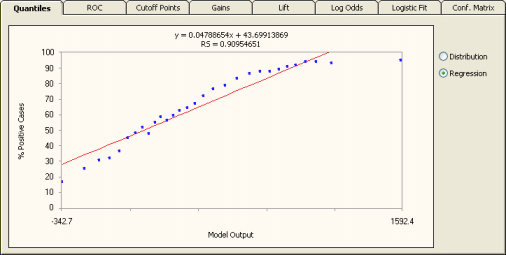

Besides allowing the visualization of Quantile Tables, GeneXproTools also shows and performs a weighted
Quantile Regression. Both the slope
and intercept of the regression line, as well as the R-square, are
computed and shown in the Quantile Regression Chart.
These parameters form the core of the Quantile Regression Model and can be used both to
evaluate rankings and to make discrete classifications
in a fashion similar to what is done with the
Logistic Regression Model. Within the
Logistic Regression Framework of GeneXproTools, however, only the
Logistic Regression Model is used to evaluate rankings
(probabilities, in this case) and to estimate the most likely class.
Furthermore, the Scoring Engine of
GeneXproTools also uses the Logistic Regression Model to make
predictions, not the Quantile Regression Model.
Note also that in the X-axis of the Quantile Regression Chart, GeneXproTools plots model outputs and therefore you can see clearly how spread out model scores are. Note also that, in the Quantile Regression Chart, upper boundaries are used if the
predominant class is “1” and the model is normal, or the predominant class is “0” and the model is inverted; and lower boundaries are used if the
predominant class is “1” and the model is inverted, or the
predominant class is “0” and the model is normal.
On the companion Statistics Report on the right (the Quantiles section opens up every time the Quantiles Chart Tab is selected), GeneXproTools also shows the Spread from Top to Bottom, Spread from Top to Middle, and Spread from Middle to Bottom (when the number of buckets is even, the middle value is the average of the two middle buckets). Note that negative values for the spreads, especially the Spread from Top to Bottom, are usually indicative of an inverted model. In absolute terms, however, the wider the spread the better the model.
