Getting Started with Function Finding
This tutorial covers the fundamental steps in the creation of
nonlinear regression models in the Function Finding
Platform of GeneXproTools. We’ll start with a quick hands-on introduction
to get you started, followed by a more detailed overview of the
fundamental tools you can explore in GeneXproTools to create
very good predictive models that accurately explain your data.
 |
Hands-on Introduction to Nonlinear Regression |
Designing a good nonlinear regression model in GeneXproTools is really simple:
after loading your data, GeneXproTools takes you immediately to the

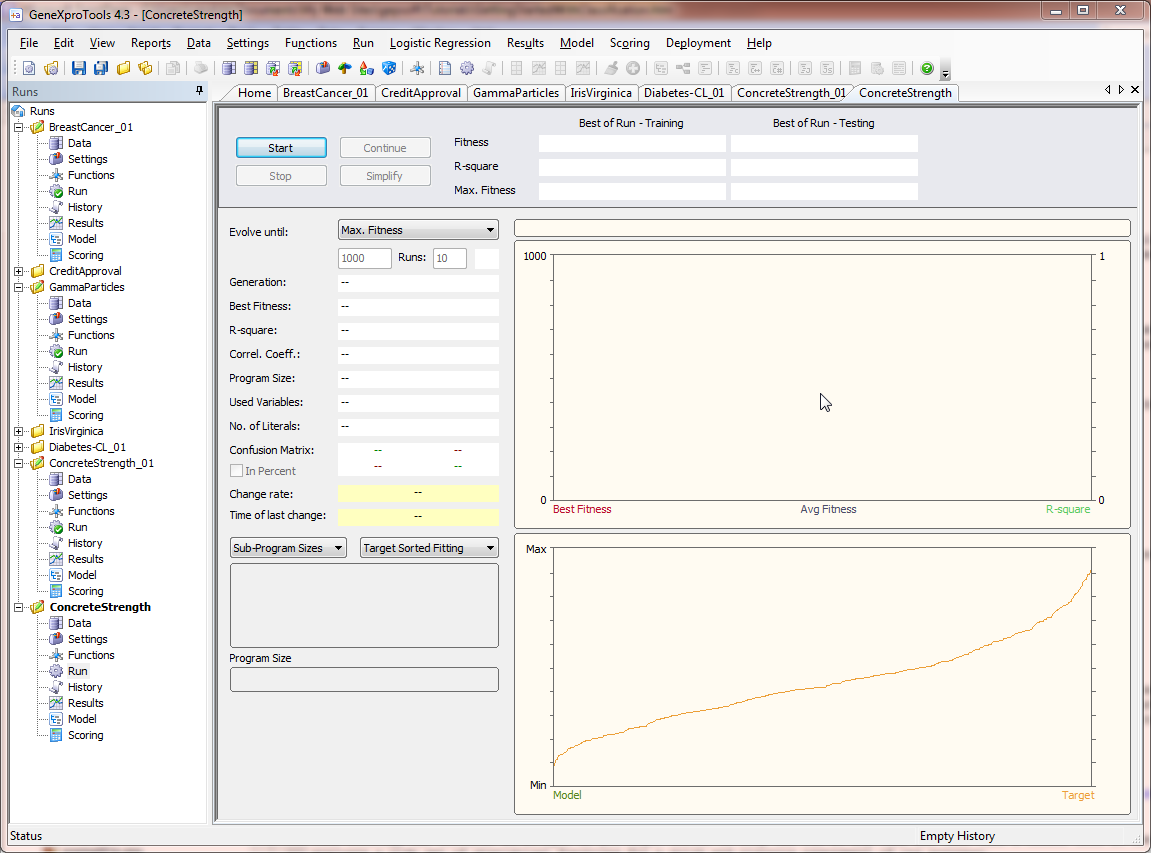

Run Panel where you just have to click the
Start button to create a model.
This is possible because GeneXproTools comes with pre-set defaults that work
very well with virtually all problems. We’ll learn later how to choose
some of the most basic settings so that you can explore all the advanced tools of
the software, but you can in fact design highly sophisticated and accurate models
with just a click.
Monitoring the Design Process

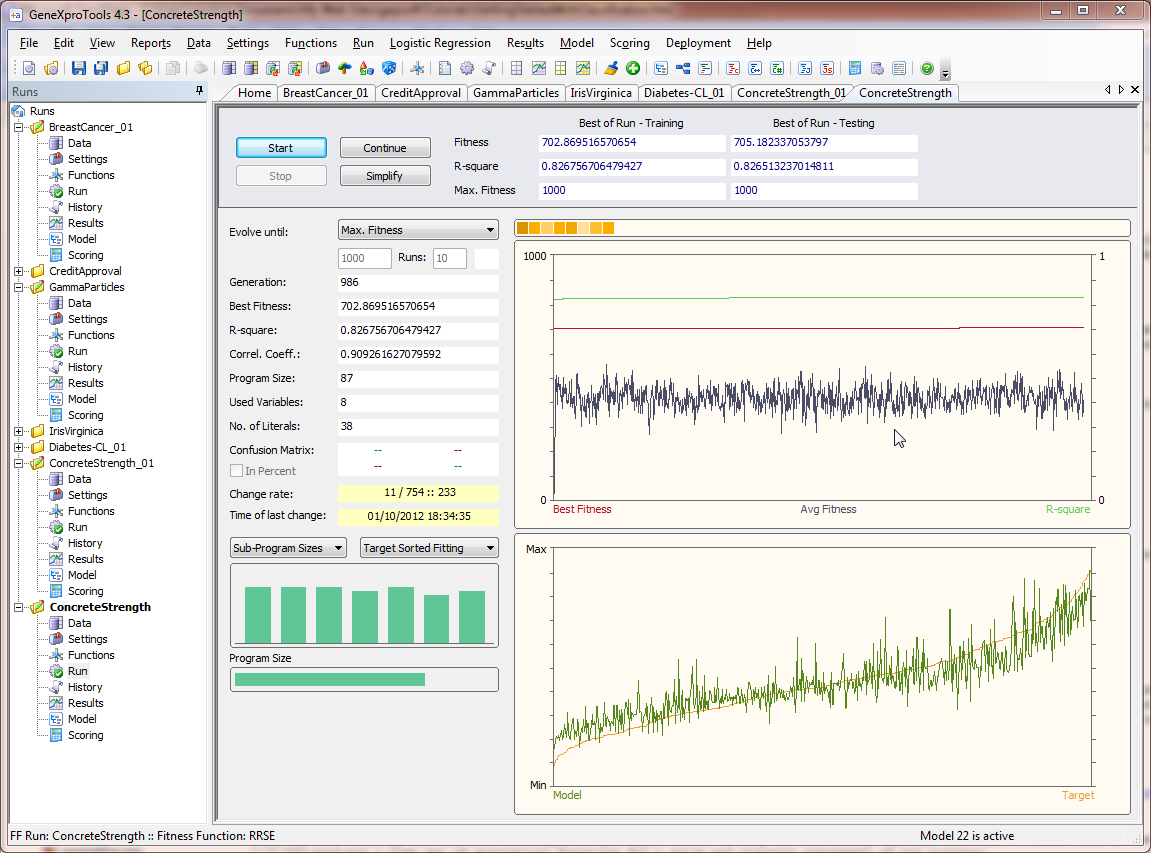

While the model is being created by the learning algorithm, you can evaluate and
visualize the actual design process through the real-time
monitoring of different
curve fitting charts and statistics
in the Run Panel.
Model Evaluation & Testing

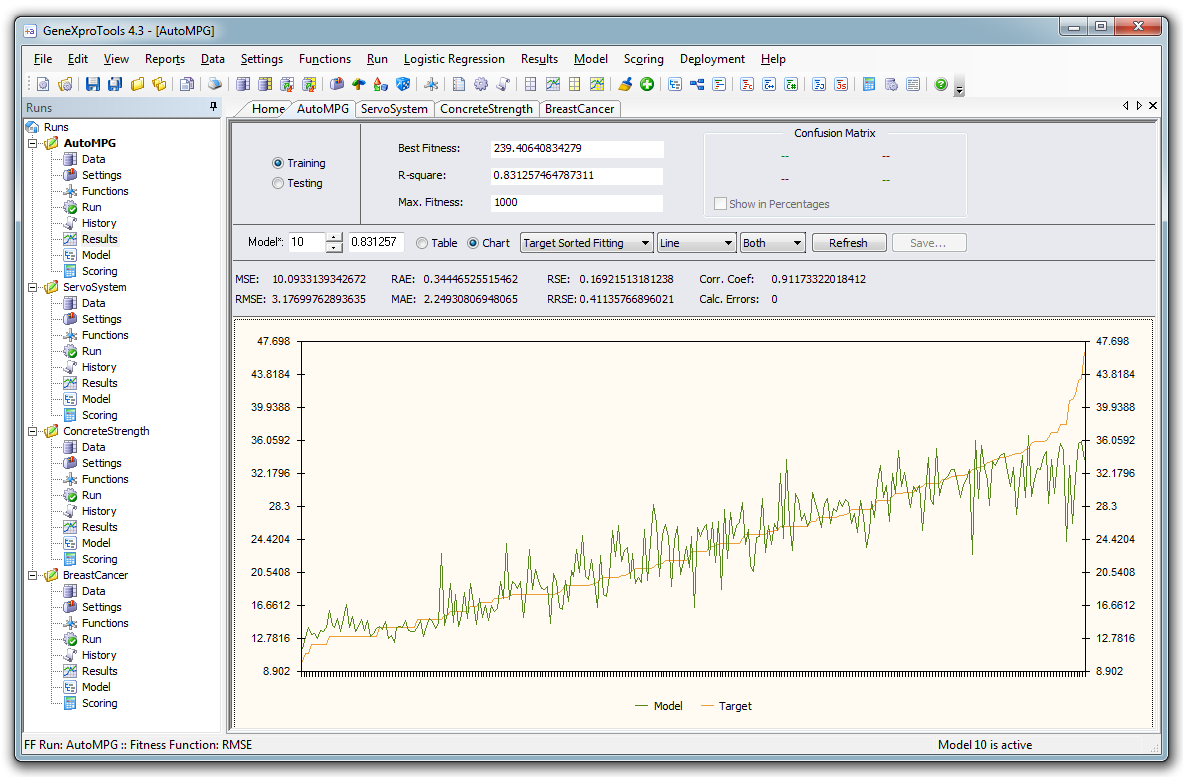

Then in the Results Panel you can further evaluate your model using different charts
and statistics. It’s also in the Results Panel that you can check more thoroughly how your model
generalizes to unseen data by checking how well it performs in the test set.
Generating the Model Code

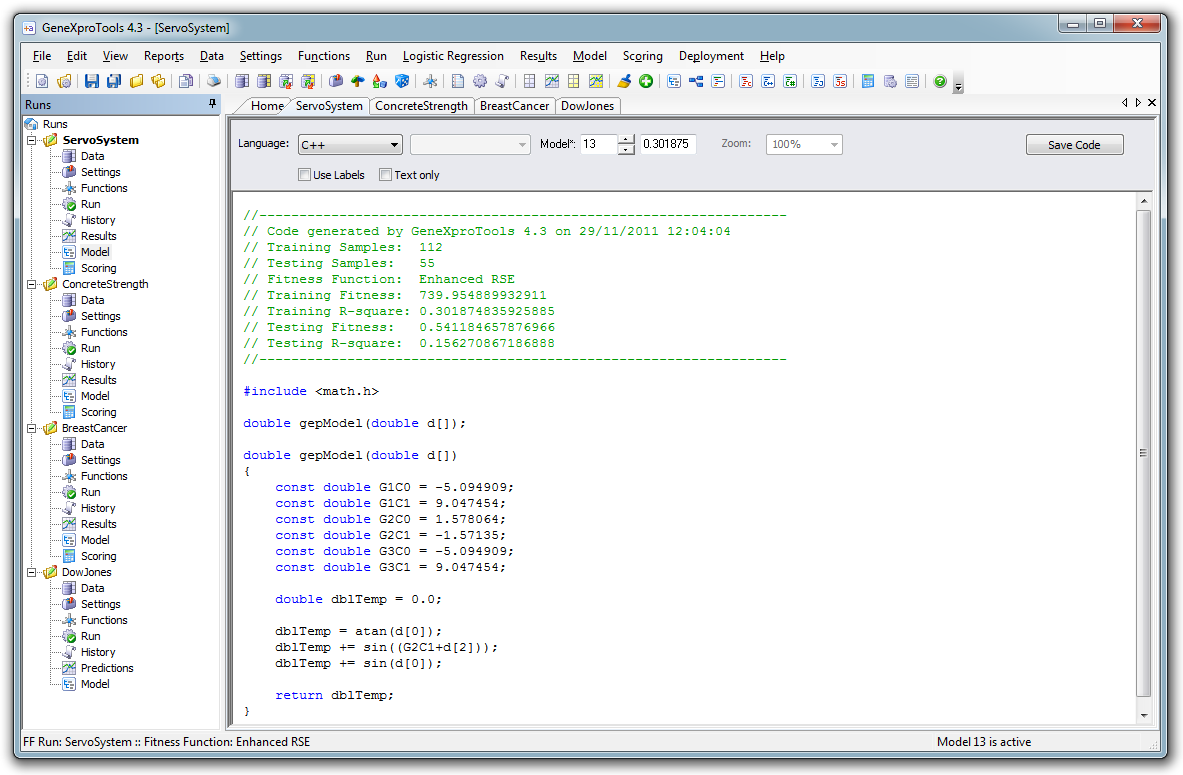

Then in the Model Panel you can see
and Then in the Model Panel you can see

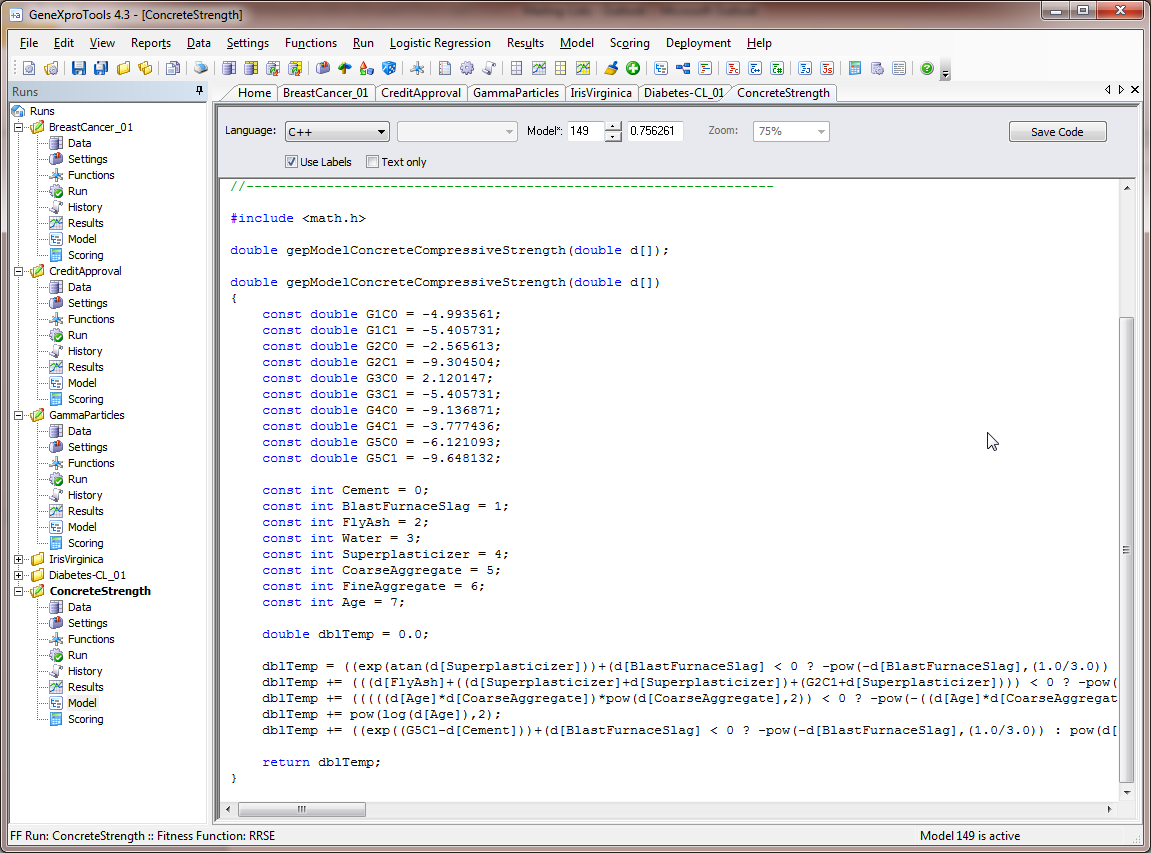

and analyze the model code not only in the programming language of
your choice but also as expression trees. GeneXproTools has 16 built-in grammars for Function Finding to generate code automatically in
some of the most popular programming
languages: Ada, C, C++, C#, Excel VBA, Fortran, Java, Java Script, Matlab,
Pascal, Perl, PHP, Python, Visual Basic, VB.Net, and VHDL.
But you can also add your own grammar through
user-defined grammars, which means
that in GeneXproTools you really can generate code automatically in the programming language of
your choice.
Making Predictions

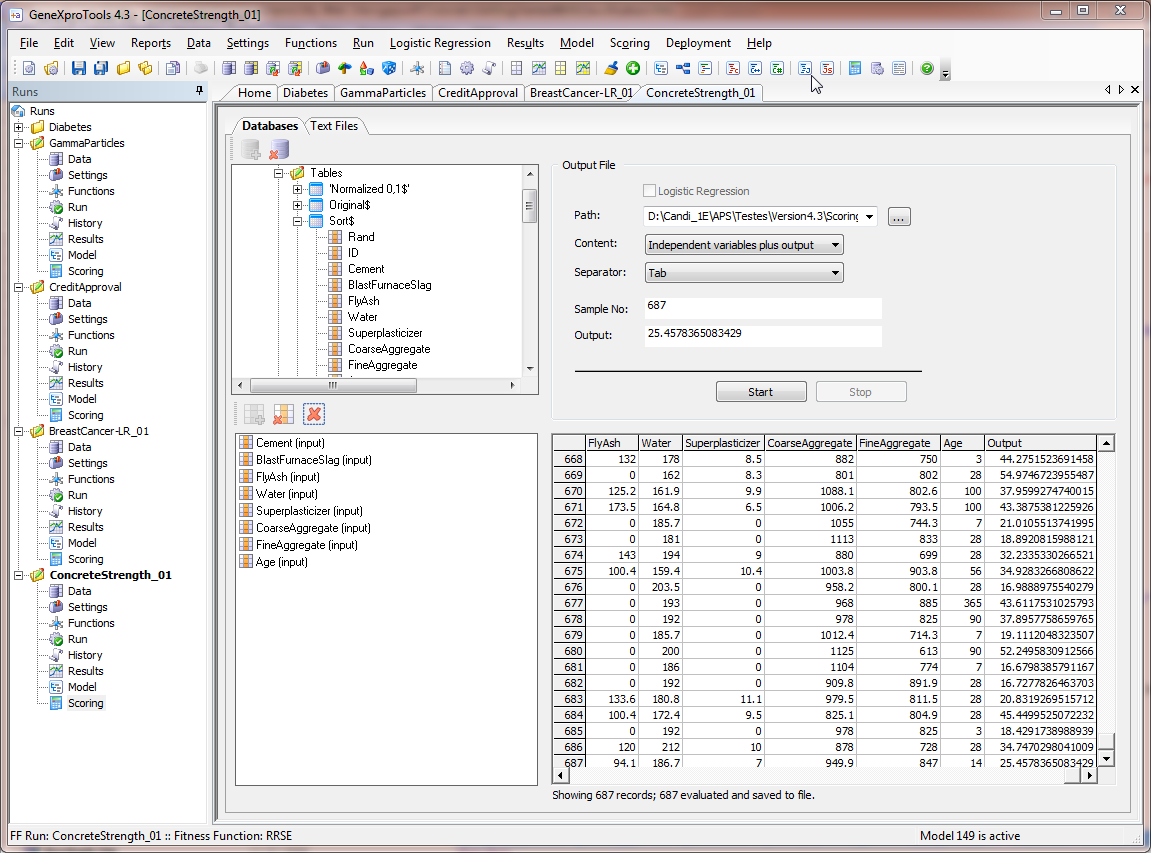

And finally, in the Scoring Panel of
GeneXproTools you can make predictions using
the generated JavaScript code of your model. This means that you don’t have to know how to deploy the model code to
make predictions outside GeneXproTools: you can make them immediately within the
GeneXproTools environment. GeneXproTools
also deploys individual models and model
ensembles automatically to Excel using the
generated Excel VBA code of your models. So
you can also make your predictions very
conveniently in Excel.
 |
Loading Data |
The nonlinear regressors
GeneXproTools creates are statistical in
nature or, in other words, data-based. And therefore
GeneXproTools needs training data
from which to extract the information needed to create the models. Data is also needed
for validating and testing the generalizability of the generated models.
Data Formats
Before evolving a model with GeneXproTools you must first load the input data.
GeneXproTools allows you to work both with
Excel & databases and text files.
For text files GeneXproTools supports two different data matrix formats.
The first is the standard Records x Variables format where records are
in rows and variables in columns, with the dependent or response variable occupying the
rightmost position. In the small example below with five
records, PRODUCTION is the response variable and LABOR, MATERIAL,
and CAPITAL are the dependent or predictor variables:
LABOR MATERIAL CAPITAL PRODUCTION
0.88287491 0.70249262 0.64540872 0.73044339
0.76598265 0.59360711 0.62686264 0.64924032
0.64562062 0.56965563 0.53160265 0.58497820
0.72908206 0.58913859 0.52247179 0.62160041
0.50690655 0.23498841 0.42968111 0.36493144
And the second is the Gene Expression Matrix format commonly used
in DNA microarrays studies where records are in columns and
variables in rows, with the dependent variable
occupying the topmost position. For instance, in Gene Expression
Matrix format the small dataset above corresponds to:
PRODUCTION 0.73044339 0.64924032 0.5849782 0.62160041 0.36493144
LABOR 0.88287491 0.76598265 0.64562062 0.72908206 0.50690655
MATERIAL 0.70249262 0.59360711 0.56965563 0.58913859 0.23498841
CAPITAL 0.64540872 0.62686264 0.53160265 0.52247179 0.42968111
This kind of format is the standard for
datasets with a relatively small number of records and thousands of
variables. Note, however, that this format is not
supported for Excel files and if your data is kept in this format in Excel, you must
copy it to a text file and then use this file to load your data into GeneXproTools.
GeneXproTools uses the Records x
Variables format internally and therefore all
kinds of input format are automatically
converted and shown in this format in
the Data Panel and Scoring Panel.
GeneXproTools supports the standard separators (space,
tab, comma, semicolon, and pipe) and detects them automatically. The
use of labels to identify your variables is optional and
GeneXproTools also detects automatically whether they are
present or not. However, if you use them you will be able to
generate more intelligible code with each variable
clearly identified by
its name.
Loading Data Step-by-Step
To Load Input Data for Modeling
- Click the File Menu and then choose New.
The New Run Wizard appears. You must give a name to your new run file (the default filename extension of
GeneXproTools run files is .gep) and then choose
Function
Finding in the Problem Category box and the kind of source file
in the Data Source Type box.
GeneXproTools allows you to work both with Excel
& databases and text
files.

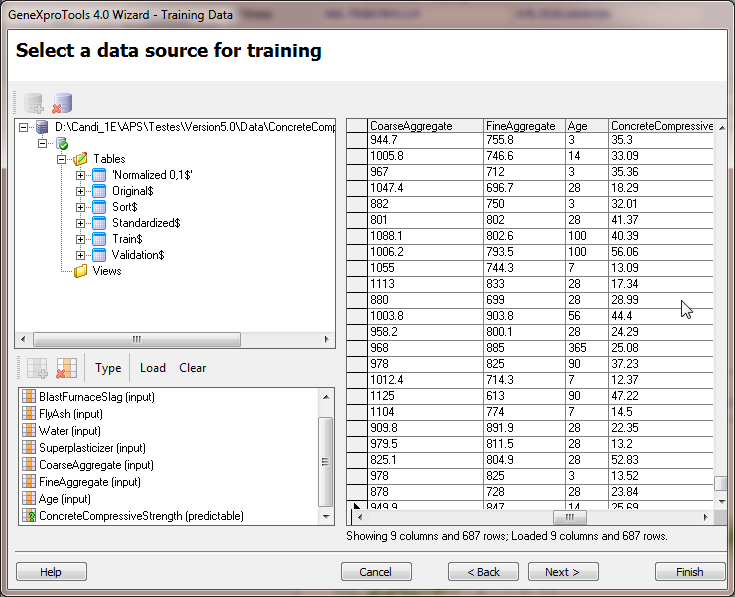

- Then go to the Training Data window by clicking the Next button.
Choose the path for the training set by browsing the Open dialog
box and choose the appropriate data matrix format. Irrespective
of the data format used,
GeneXproTools shows the loaded data in the standard
Records x
Variables format, with the dependent variable occupying the
rightmost position.
- Then go to the Testing Data window by clicking the Next button.
Repeat the same steps of the previous point if you wish to use a
testing set to evaluate the
generalizability of your models.
- Click the Finish button to save your new run file.
The Save As dialog box appears and after choosing the directory where you want your new run file to be saved, the
GeneXproTools modeling environment appears.
Then you just have to click the Start button to create a model as
GeneXproTools automatically chooses, from a gallery of templates, default settings that will enable you to evolve a model immediately.
Data Pre-Processing
In data mining, whether performed by learning algorithms or conventional statistical methods, it really pays to take a good look at your data before embarking on a complex, usually time consuming modeling
process. It's true that evolutionary algorithms are particularly well equipped to deal with noisy data, but the better the data you feed them the better the models they produce.
GeneXproTools helps you find missing or invalid values in your datasets and prompts you to fix them before they are used for modeling. But the preparation of a well balanced data set should be done before loading the data into
GeneXproTools, and we recommend you to particularly take care of the following:
- Choose a well balanced dataset.
- Choose a reasonable number of records for training.
An excessively large dataset will slow the modeling process unnecessarily. If you have access to huge datasets, it’s good practice to use the surplus
records for testing instead. A good rule of thumb consists of using about 10
records for each independent variable in your training data.
- Check your datasets carefully for
errors. Typographical or measurement errors generally cause outliers that can be detected by
plotting one variable at a
time, a task that can be easily accomplished
within GeneXproTools in
the Data Panel.
The visualization tools of GeneXproTools make it easy to identify outliers,
which may well represent errors in the data. After loading your data into
GeneXproTools, in the Data Panel you can visualize the distribution of values for
each variable and also analyze the correlation between each independent variable
and the dependent variable by studying their scatter plots.
 |
Choosing the Function Set |
GeneXproTools allows you to choose your function set from a total of
279 built-in mathematical functions and an unlimited number of
custom functions, designed using the JavaScript language in the GeneXproTools environment.
Built-in Mathematical Functions
GeneXproTools offers a total of 279 built-in mathematical
functions, including 186 different IF THEN ELSE rules, that
can be used to design nonlinear regression models. This wide
set of mathematical functions allows the evolution of complex
and accurate models, easily built with the most appropriate functions.
You can find the description of all the 279 built-in mathematical functions
available in GeneXproTools, including their representation in the
Knowledge Base.
The Function Selection Tools of GeneXproTools helps you
in the selection of different function sets very quickly
through the combination of the Show options with the
Random/Default/Clear/Select All buttons plus the Increase/Reduce
Weight buttons in the Functions
Panel.
User Defined Functions
Despite the wide set of GeneXproTools
built-in mathematical functions, some users
sometimes want to model with different ones.
GeneXproTools gives the user the possibility
of creating custom functions (called
Dynamic UDFs and also DDFs in
GeneXproTools) and evolve models with them. A note of
caution though: the use of custom functions slows considerably the evolutionary process and therefore should be used with moderation.
By selecting the Functions Tab in the Functions Panel, you have full access to the 279 built-in mathematical functions of
GeneXproTools. Here is also the place where you can add
your custom functions (Dynamic UDFs) to your modeling kit.
To select a function, just check the Select box on the left
of the Functions Panel. By default, the weight of each function is 1, but you can increase the probability of a function being included in your models by increasing its weight in the Select/Weight column. GeneXproTools automatically balances your
function set with the number of independent variables in your data,
therefore you just have to select the set of functions for your problem and then choose their relative
proportions by choosing their weights.
To add a custom function to your modeling kit, just click the Add button on the Dynamic UDFs frame and the
DDF Editor appears.

By choosing the arity (minimum is 1 and maximum is 4) in the Arity box, the function header appears
in the code window. Then you just have to write the body of the function in the code editor. The code must be in JavaScript and can be
conveniently tested for compiling errors by pressing the Test button.
In the Definition box, you can write a brief description of the function for your future reference. The text you write
there will appear in the Definition column of the Functions Panel.
Dynamic UDFs are extremely powerful and interesting tools as they are treated exactly
like the built-in functions of GeneXproTools and therefore can be used to model
all kinds of relationships not only between the original variables but also between
derived features created on the fly by the learning algorithm. For instance, you can design
a DDF so that it will model the log of the sum of four expressions, that is,
DDF = log((expression 1) + (expression 2) + (expression 3) + (expression 4)),
where the value of each expression will depend on the context of the DDF in the
expression tree. A note of caution, though, although extremely useful, DDFs decrease
considerably the speed of the algorithm and therefore we advise you to choose,
whenever possible, your functions from the wide set of GeneXproTools built-in functions.
 |
Creating Derived Features/Variables |
Derived variables or new features can be easily created in GeneXproTools.
They are created in the Functions Panel, in the Static UDFs Tab.
Historically, derived variables were called
UDFs or User Defined Functions
and in GeneXproTools they are represented as UDF0, UDF1, UDF2, and so on. Note however that
UDFs are in fact new features derived from the original variables in the training and test datasets.
Like DDFs, they are implemented in JavaScript using the JavaScript editor of GeneXproTools.
These user defined features are then used by the learning algorithm exactly as
the original features, that is, they are incorporated into the evolved models
adaptively, with the most important being chosen and selected according to the increase
in performance they impart on the models.
 |
Choosing the Model Architecture |
In GeneXproTools the evolving models are
encoded in linear strings or chromosomes.
And the chromosome architecture includes the
head size, the number of genes and the linking
function. You choose these parameters in the Settings Panel -> General
Settings Tab.
The Head Size determines the complexity of each term in your model. In the
heads of genes, the learning algorithms try out different arrangements of functions and
terminals (original & derived variables and constants) in order to model your data. The plasticity of this architecture allows the discovery of
a virtually infinite number of models of different sizes and shapes which are afterwards tested and selected during the learning process.
The heads of genes are shown in blue in the compact
Karva representation of your models in the Model Panel.
This linear code is then translated into any
of the built-in programming languages of
GeneXproTools (Ada, C, C++, C#, Excel VBA, Fortran, Java, Java Script, Matlab,
Pascal, Perl, PHP, Python, Visual Basic, VB.Net, and VHDL).
More specifically, the head size h of each gene determines the maximum width
w and maximum depth d of the sub-expression trees
encoded in the gene, which are given by the formulas:
w = (n - 1) *
h + 1
d = ((h + 1) /
m) * ((m +
1) / 2)
where m is minimum arity and n is maximum arity.
Thus, the learning algorithm selects its
models between these extreme cases,
fine-tuning the ideal size and shape during
the evolutionary process, creating and
testing new nonlinear features on the fly
without human intervention.
The number of genes per chromosome is also an important parameter. It will determine the number of
fundamental terms or building blocks in your model as each gene codes for a different
sub-expression tree (sub-ET). Theoretically, one could just use a huge single gene
in order to evolve very complex models. But the partition of the chromosome into simpler,
more manageable units gives an edge to the learning process and more efficient and elegant models
can be discovered using multigenic chromosomes.
Whenever the number of genes is greater than one, you must also choose a suitable
linking function for linking the mathematical terms encoded in each gene.
GeneXproTools allows you to choose
addition, subtraction, multiplication, or division to link the sub-ETs. As expected, addition (and obviously
subtraction) works very well for virtually all problems but sometimes one of the other linkers could be useful for searching different solution spaces.
 |
Choosing the Fitness Function |
For Function Finding problems, in the Fitness Function Tab of the Settings Panel you have access to
a wide range of built-in fitness
functions. Additionally, you can also design your own
custom fitness functions and explore the solution space with
them.
By choosing Custom in the Fitness Function box, the custom fitness
editor is activated.
You can design your own custom
fitness function using the Custom Fitness Function window to write the code of your fitness function. The code for the custom fitness function must be in JavaScript and can be tested before evolving a model with
it by pressing the Test button.
The built-in fitness functions of GeneXproTools for Function Finding:
The kind of fitness function you choose will depend most probably on the statistical function
or error measure you are most familiar with. And although there is nothing wrong with this,
for all of them can accomplish an efficient
evolution, you might want to try different
fitness functions for they travel the
fitness landscape differently: some of them
very straightforwardly in their pursuits
while others choose less travelled paths,
considerably enhancing the search process.
 |
Exploring the Learning Algorithms |
GeneXproTools uses two different learning algorithms for
Function Finding problems. The first – the basic gene expression algorithm
or simply Gene Expression Programming (GEP) – does not support the direct manipulation of random numerical constants,
whereas the second – GEP with Random Numerical Constants or
GEP-RNC
for short – has a facility for handling them directly. These
two algorithms search the solution landscape differently and
therefore you might wish to try them both on your problems.
For example, GEP-RNC models are usually more
compact than models generated without random
numerical constants.
The kinds of models these algorithms produce are quite different
and, even if both of them perform equally well on the problem at hand,
you might still prefer one over the other. But there are cases, however,
where numerical constants are crucial for an efficient modeling and,
therefore, the GEP-RNC algorithm is the default in
GeneXproTools. You activate this algorithm in the Settings Panel -> Numerical Constants by checking the Use Random Numerical Constants box.

The GEP-RNC algorithm is slightly more complex than
the basic gene expression algorithm as it uses an additional gene domain (Dc) for encoding the random
numerical constants. Consequently, this algorithm comes equipped
with an additional set of genetic operators (RNC mutation, Dc mutation, Dc inversion, and Dc IS transposition) especially developed for handling random
numerical constants (if you are not familiar with these operators,
please use the default values by clicking the Default button for
they work very well in all cases, or you can learn more about them in
the Knowledge Base).
And last but not least, since these parameters are crucial if you are handling numerical constants directly, you must also choose and adjust the range and type of numerical constants that will be used by the
GEP-RNC algorithm during the learning process. As for the
Number of Constants per Gene parameter, a good rule of thumb consists of using a small set of 10 different constants per gene as this seems to provide enough diversity for most problems without inflating the structural complexity much.
 |
Exploring Different Evolutionary Strategies for an Efficient Learning |
Predicting unknown behavior efficiently is of course the foremost goal in modeling.
But extracting knowledge from the blindly designed models is
also extremely important
as this knowledge can be used not only to enlighten further the modeling process but also
to understand the complex relationships between variables.
So, the evolutionary strategies we recommend in the GeneXproTools templates
for Function Finding reflect these two main concerns: efficiency and simplicity. Basically, we recommend starting the modeling process with the GEP-RNC algorithm
and a function set well adjusted to the complexity of the problem.
GeneXproTools chooses the appropriate template for your problem according
to the number of variables in your data. This kind of template is a good starting
point that allows you to start the modeling process immediately with just a mouse click. Indeed, even if you are not familiar with evolutionary computation in general and
Gene Expression Programming in particular, you will be able to design complex nonlinear
regression models immediately thanks to the templates of
GeneXproTools. In these templates, all the adjustable parameters of the
default learning algorithm are already set
and therefore you don’t have to know how to create genetic diversity, how to set the appropriate population size, the chromosome architecture, the fitness function,
how to increase the complexity of your models, and so forth. Then, as you learn more about
GeneXproTools, you will be able to explore all its modeling tools and create quickly and efficiently very good
regression models that will allow you to understand
and model your data like never before.
There is, however, a very important setting in GeneXproTools that is not controlled by
GeneXproTools templates and must be wisely chosen by you: the
number of training records. Theoretically, if your data is well balanced and in good condition, evolutionarily
speaking, the more records the better. But there's a catch, obviously: the larger the training set the
slower evolution or, in other words, the more time will be needed for generations to go by. So, you must compromise here and choose a training set with the appropriate size. A good rule of thumb consists of choosing
between 10-100 training records for each independent variable in your data; all the remaining
records could be used to test how well the evolved models
generalize.
So, after creating a new run you just have to click the
Start button in the
Run Panel in order to design a nonlinear
regression model. Then you
can monitor the evolutionary process, especially the
different curve fitting charts. Then, whenever you see fit, you can stop the run without fear of stopping
evolution prematurely as
GeneXproTools allows you to continue the evolutionary process at a later time by using the best-of-run model as the starting
point (evolve with seed). For that you just have to click the
Continue button in the
Run Panel to continue the search for a
better model.
This strategy has enormous advantages as you might choose to stop the run at any time and then take a closer look at the evolved model. For instance, you can analyze its mathematical representation, its performance in the testing set,
evaluate a wide set of statistical functions for a quick and rigorous assessment of its accuracy,
see how it performs on a different testing set, and so on. Then you might choose to adjust a few parameters, say, choose a different fitness function, expand the function set, add a neutral gene,
apply parsimony pressure for simplifying its
structure, change the training set for model
refreshing, and so on, and then explore this new
set of conditions. You can repeat this process for as long as you want or until you are completely satisfied with
your model.
Last modified: October
2, 2012
|
